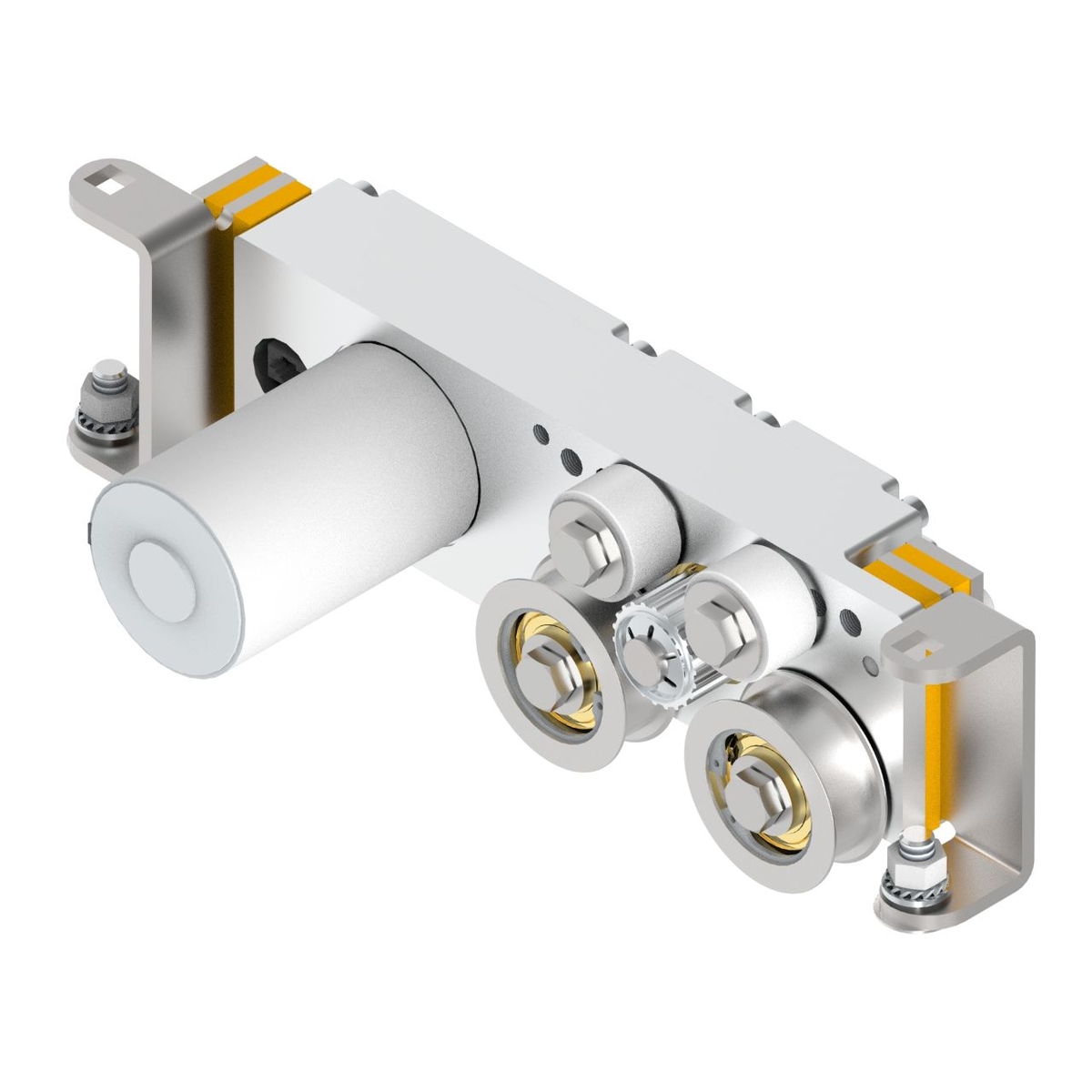

safe - compact - drive with redundant control unit type: SKA-AR7-O-1
product description:
Safe - compact - drive with redundant control unit with integrated emergency power supply, electronic closing-force-limitation and electronic end-position-control.
Type: SKA-AR7-HE-S-5 for mounting on the running rail. Toothbelt lying on the gate leaf.
Size 1 with max. pulling force 150N by max. gate leaf weight 650kg. The Drive has a sensitivity control and back-up batteries. The gate is movable by hand.
technical data:
- type: SKA-AR7-O-1
- name of gearbox: VLM
- motor designation: GR63x25
- voltage: 24V
- output speed: 3300/min
- torque: 0,14Ncm
- gearbox producer: Liberda Antriebstechnik
- reduction: i=1:36,1
- max. nominal torque: 5Nm
- nominal pulling force: 150N
- speed: 8cm/s
- pinion: AT5/22
- drive means: toothbelt AT5, maximum tensile load: 700N with 4-fold break resistance
Downloads
Title | Language | File size |
---|---|---|
Datenblatt SKA-ARX-O-1 | DE | 319,03 KB |
data sheet SKA-ARX-O-1 | EN | 318,08 KB |
