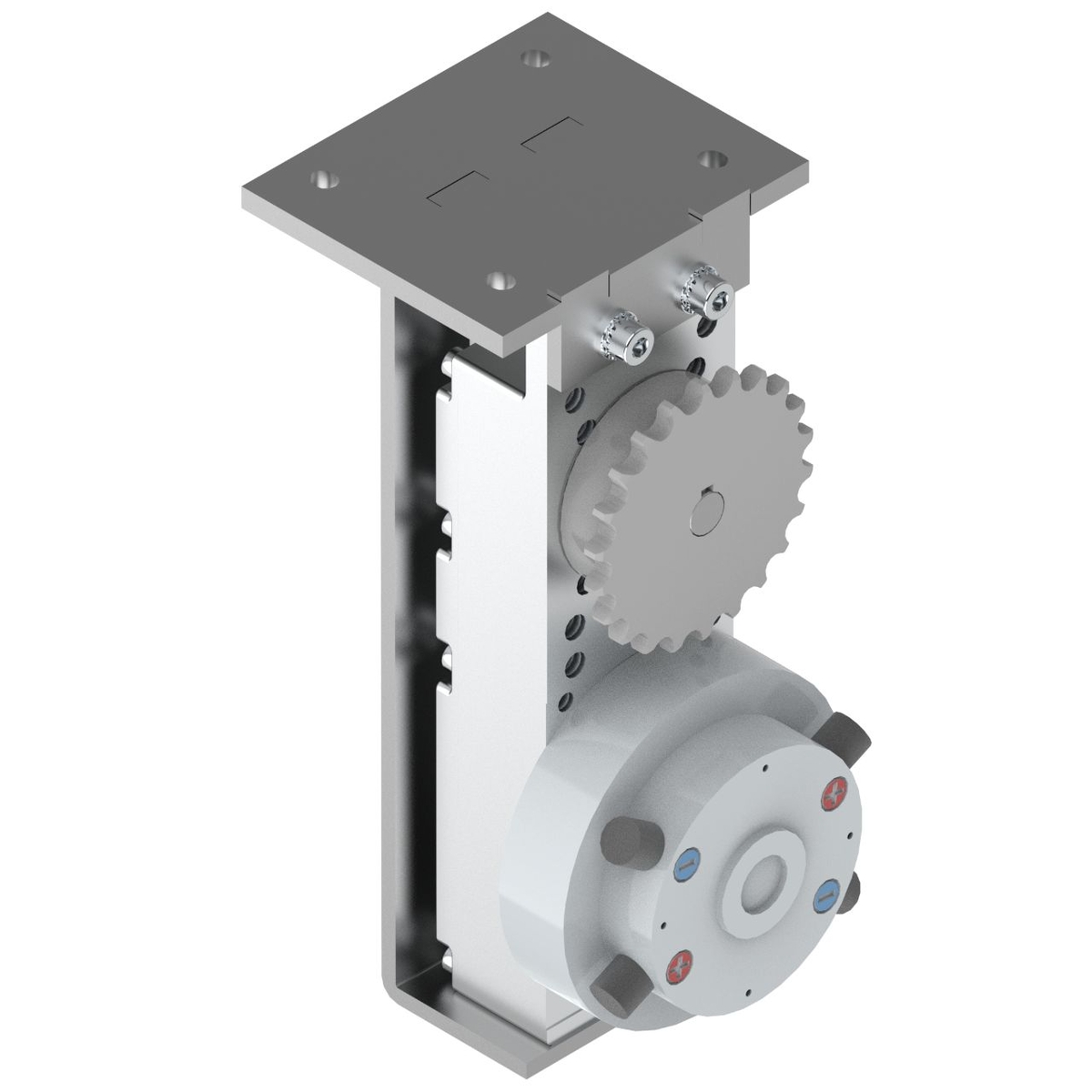

safe - compact - drive with redundant control unit type: SKA-AR7-HE-S-5

product description:

Safe - compact - drive with redundant control unit with integrated emergency power supply, electronic closing-force-limitation and electronic end-position-control.

Type: SKA-AR7-HE-S-5 for mounting in the support profile of the running rail. Toothbelt runs beside from the running rail.

The drive is suitable for hold-to-run mode or automatic mode with 200.000 cycles by gate leaf weight of max. 500kg. The Drive has a sensitivity control and back-up batteries. The gate is movable by hand.

technical data:

• type: SKA-AR7-HE-S-5
• name of gearbox: hanging - fast
• motor designation: Baumüller GDM100N2
• voltage: 24V
• output speed: 2400/min
• torque: 85Ncm
• gearbox producer: Liberda Antriebstechnik
• reduction: i=1:36,1
• max. nominal torque: 29Nm
• nominal pulling force: 676N
• speed: 40cm/s
• pinion: AT5-54
• drive means: toothbelt 16AT5, maximum tensile load: 1120N with 4-fold break resistance
